ME0201013601

ME0201013601

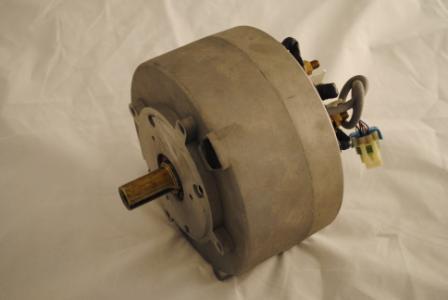

Item# ME0201013601

Product Description

Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 12 to 96 VDC. Continuous current of 60 amps. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap. The motor is totally enclosed. Maximum rotor speed of 5000 rpm. Continuous output of 5 kw at 96 VDC to control and 60 amps continuous, 4400 rpm. Peak output for 1 minute of 13 kw.

Similar voltage constant to the ME0201014201 and ME0913 motors.

28 turns per phase Line to Line resistance of 0.025 ohms

Three Hall Cells are provided for speed indication at 120 electrical degrees.

ME0808 Hall Sensor Connector
ME0808 Hall Sensor Connector
This is the mating connector for the Hall Cell Assembly used on the axial air gap brushless motors. Comes with all 5 pins fully assembled and crimped, with a 6 inch lead.
$12.88
ME0808
ME0201013601 Outline Drawing
