ME0201014201

ME0201014201

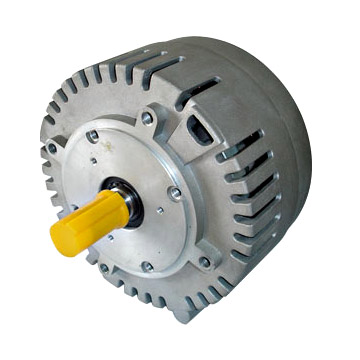

Item# ME0201014201

Product Description

Designed for long life. No brush maintenance. The motor has peak efficiency of 90% at voltages between 24 to 72 VDC. Continuous current of 90 amps at 48 VDC. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap.

This motor goes slower as compared to the ME0201013001 motor, with more torque per amp.

28 turns per phase Line to Line resistance of 0.025 ohms Motor weight of 22 pounds.

ME1009 Bi-Directional Fan
ME1009 Bi-Directional Fan
Bi-Directional Fan for brushless motor. The standard fan is set for Counter-Clockwise Rotation of the motor, looking at the output shaft. This fan allows the motor to cool in either direction. Straight, radial blade. Fits a shaft with 13 mm diameter.
$12.00
ME1009
Outline Drawing
