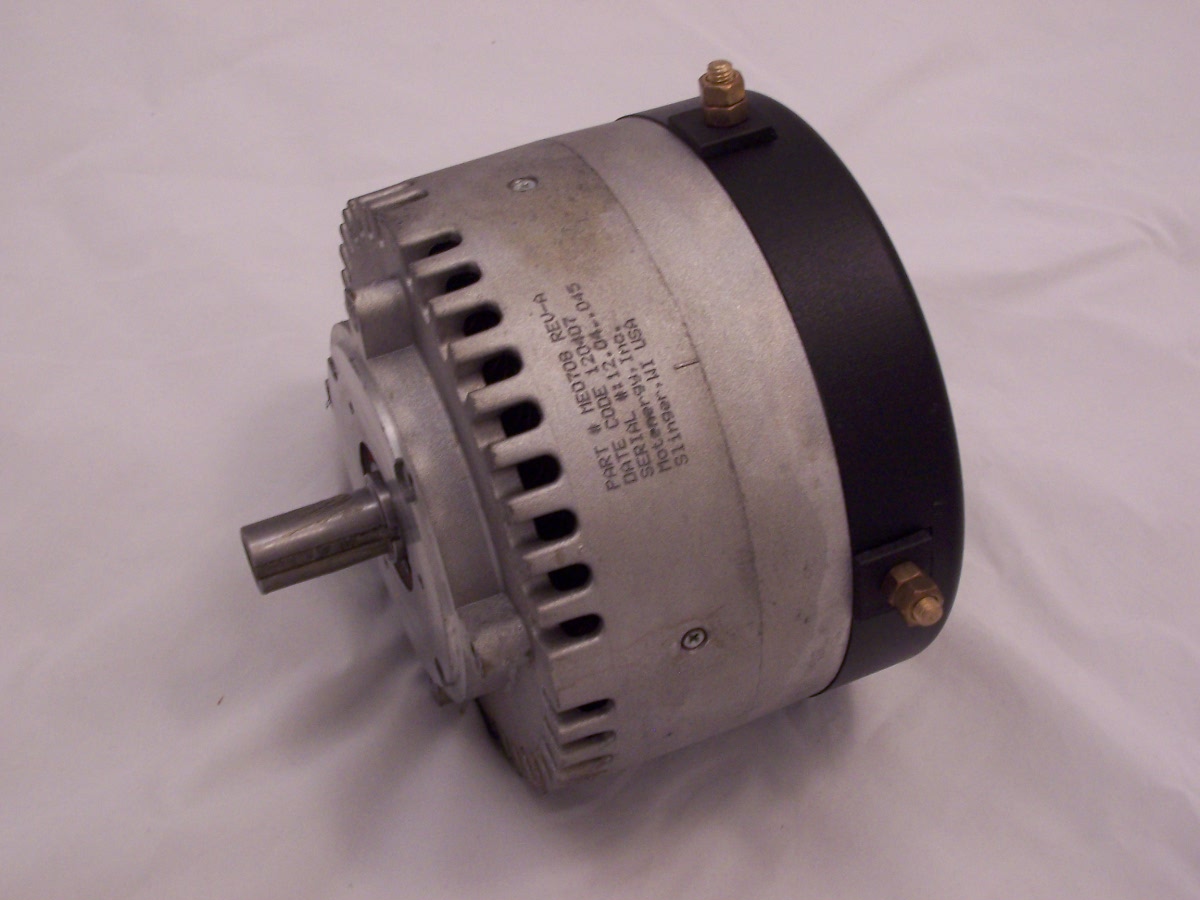

ME0708 Brush-Type DC Motor

ME0708 Brush-Type DC Motor
Item# ME0708

Product Description

This ME0708 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 4.8 KW continuous and 15 KW for 1 minute. For voltages from 12 to 48 VDC input and 100 amps continuous (300 amps for 1 minute). Designed for battery operated equipment. For more information, see the Drawing below. Motor weight of 28 pounds.

1) Armature Resistance Line to Line is 0.010 Ohms. 2) The number of brushes is 8. 3) The maximum recommended rotor speed is 5000 rpm. 4) Voltages from 0 to 48 VDC input. 5) Torque constant of 0.13 Nm per Amp 6) The Inductance Phase to Phase is 0.06 Milli-Henry. 7) Armature Inertia is 180 Kg Cm Squared. 8) Continuous current of 100 Amps DC. 9) Peak current of 300 Amps DC for 1 minute. 10) Weight of 28 pounds. 11) Peak Stall Torque if 38 Nm. 12) This is an Open Frame, Fan Cooled motor.

ME0804 Brush Holder
ME0804 Brush Holder
Brush Holder for the ME0708 and ME0709 motors. Comes complete with a new Holder, 8 Brushes fully assembled, and 8 new springs. Easy to assemble to the motor without disturbing the motor's bearings.

Shipped in an 8" x 8" x 3" box, weighing 2 pounds. For volume discounts or an OEM purchase, please give us a call.

This does not fit the original Etek motor made by Briggs and Stratton Corporation.
ME0708 Drawing
