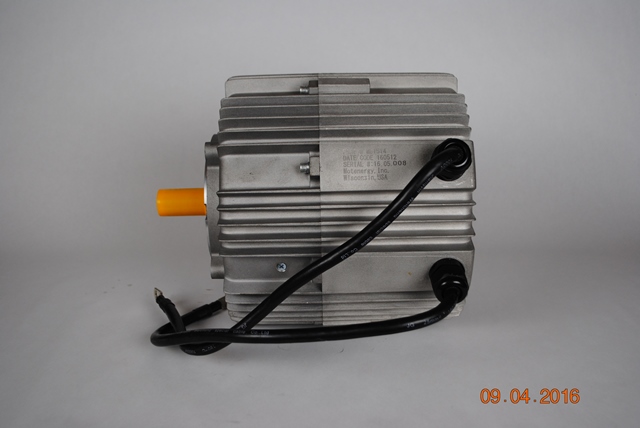

ME1514 Brush-Type DC Motor

ME1514 Brush-Type DC Motor
Item# ME1514

Product Description

The ME1514 is a Brush-Type, Permanent Magnet DC motor with very high efficiency of 90% over a very broad range. Capable of 5 KW continuous (at 72 VDC). For voltages from 12 to 72 VDC input and 77 amps continuous (400 amps for 30 seconds ). Designed for battery operated equipment. For more information, see the Drawing below. Motor weight of 47 pounds. This is a Totally Enclosed motor rated as IP65. Designed for outdoor Winch or similar applications.
