ME1616 PMAC Water Cooled

ME1616 PMAC Water Cooled
Item# ME1616

Product Description

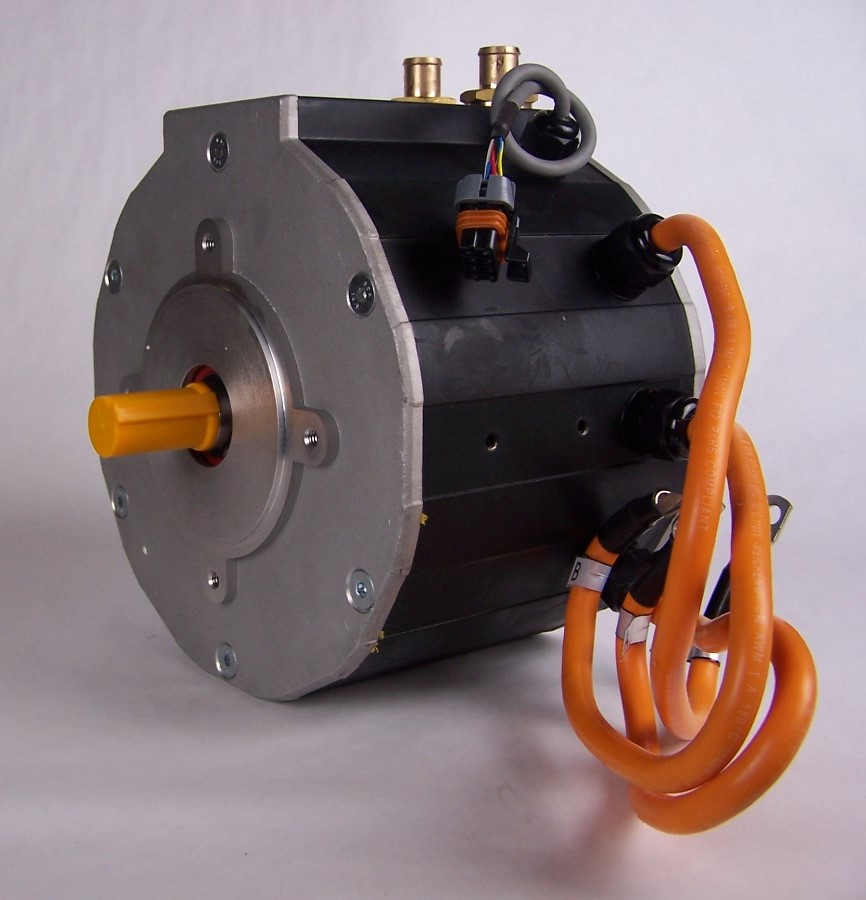

PMAC Water Cooled motor for up to 150 VDC battery systems, and 250 amps continuous. This has the same stator and rotor as the ME1905, but in a water cooled IP65 case. (IP67 possible with the addition of an output shaft side seal.) Other windings are available for up to 700 VDC applications. Motor weight of 58 pounds.
