ZYT48-10 56 FRAME 24VDC 1HP 1800RPM TEFC

ZYT48-10 56 FRAME 24VDC 1HP 1800RPM TEFC
Item# ZYT48-10
$206.00

Product Description

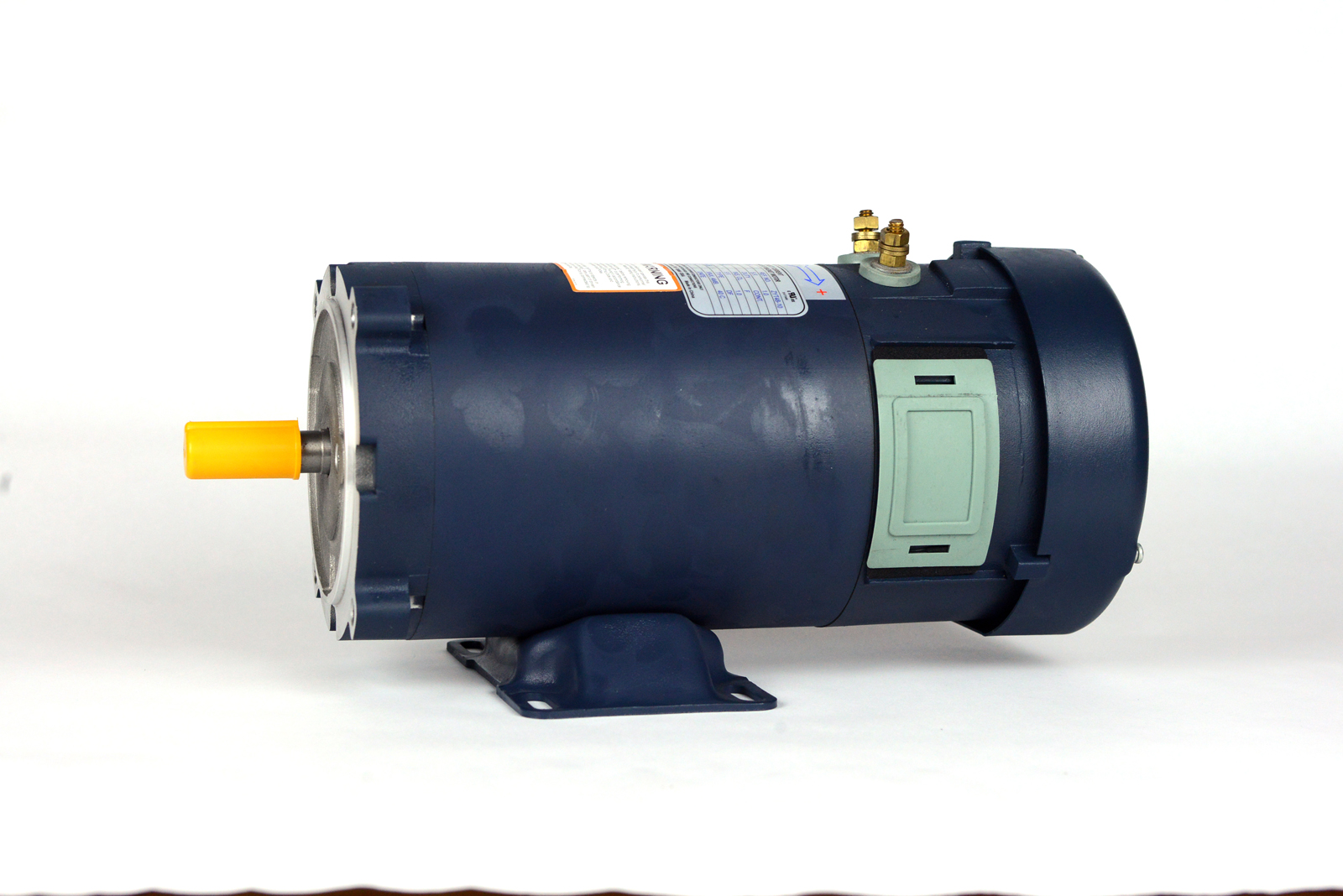

Brush-type, 56-frame DC motor rated at 24 VDC, 1 HP and 1800 RPM. Continuous rated current of 39 amps and 35 Lb-In of torque. Shaft diameter of 5/8 inch with a 3/16 inch keyway. Totally Enclosed Fan Cooled (TEFC). Class F insulation system and 56C-face and foot mounts. UL Listed, File E477489. Similar to Leeson 108053.
